Corticospinal tract; Postcentral gyrus; Corpus callosum; Electromyography; Amyotrophic lateral sclerosis

Introduction

Amyotrophic Lateral Sclerosis (ALS) is a fatal and rapidly progressing neurodegenerative disease affecting both upper and lower motor neuron systems. It is characterized by involvement of both motor neurons, median survival time of 2-4 years from onset of symptoms. It is the third more frequent neurodegenerative diseases [1].

In Europe and the United States, ALS affects about 2 people per 100,000 habitants per year. In Cuba rates of ALS are unknown. Cuban National Neurologic and Neurosurgery Institute is ALS reference centre and it reports about 200 new ALS cases by year [2] recently have changed the widely held belief that ALS affects only the motor neuron system, because evidence suggests that ALS is a multisystem neurodegenerative disease that involves sensory and extrapyramidal systems [1-3].

Some researchers have been working looking forward markers for early diagnosis of the disease [4]. For example: Feneberg et al. have showed increase of TDP-43 (it is a phosphorylated and ubiquinated cytoplasmic aggregated of neurons and glial cells) in bio fluids and tissues in early step of ALS [5]. Audiutori et al. have isolated neurofilaments containing hetero-aggregates in blood of ALS patients [6]. Thompson et al. have determinate extracellular vesicles in Cerebrospinal Fluid (CSF) in ALS patients [7] for his part Blasso et al. have determinate circulating exosomes in biological fluids [8]. Aricha et al. have showed highs levels of chitotriosidase and Lipocalin 2 in CSF of ALS patients [9] other researches like Brenmer et al. have demonstrated abnormalities in the composition of faecal micro biome in ALS patients [10].

Neurophysiological studies are very useful in ALS diagnosis confirmation, but themselves they don´t should be considered as a markers in ALS diagnosis. MRI has been used to reject other diagnosis possibilities that could mimic ALS. Nevertheless, new image processing as voxel based morphometric, cortical thickness, volumetric analysis, fractional anisotropy, tractography and others have showed interesting changes in brain structures of ALS patients [1,2].

With this research we purpose: Evaluate the utility of image studies in detection of ALS abnormalities and correlate image finding with clinic abnormalities in ALS patients.

Material and Methods

Subjects

A total of 20 sporadic ALS patients were recruited between 2015 and 2017 for this study, they met the criteria for clinically definite or probable (El Escorial criteria). Twelve of them were male and eight were female. All of them were evaluated at Cuban Neuroscience Centre.

The age of the patients was from twenty five to seventy four years old, mean 53.3 years old.

The control group consisted of 20 sex- and age-matched healthy subjects. We obtained written informed consent form ALS and health control group to participate. The study protocol was approved by Ethical Committee of Cuban Neuroscience Centre and all of patients and health subjects were agree with the evaluation and signed informed consent.

Inclusion criteria for patient group

Met the El-Escorial criteria for clinically definite or probable ALS (upper and lower motor neuron signs in two or three anatomic regions, without image evidence of another neurologic disease).

• Sporadic form of ALS

• Age between 20 and 80 years old

• Both sexes

• Any race

• No evidence of other neurologic disease

• No evidence of respiratory failure

• Evolution time lower one year

Exclusion criteria for patient group

• Upper or lower motor neuron signs in only one anatomic region

• Upper or lower motor neuron signs due to another neurologic disease

• Patients with contraindication for MRI or neurophysiologic evaluation

• Patients with respiratory failure

• Patients that deny participating in the investigation

Inclusion criteria for health subject group

• Health subjects

• No antecedent of disease

• Negative clinic exam

• Age similar to ALS group

• Both sexes

• Any race

Exclusion criteria for health subject group

• Patients with contraindication for MRI or neurophysiologic evaluation

• Patients that deny participating in the investigation

Clinical measurements

ALS Functional Rating Scale Reviewed (ALSFRS-R) was used to evaluate the functional status of ALS patients based on 12 items, functional disability scores range from 0 (maximum disability) to 48 (normal) points.

Neurophysiological tests

Motor and Sensory nerve conduction studies were done to ALS patients, in order to evaluate main nerves of the extremities.

Somato Sensory Evoked Potentials (SSEP) of tibial nerve was done to ALS patients.

Main extremities and bulbar muscle were evaluated through needle electromyography (EMG) study in patients with ALS.

Image acquisition

MRI was carried out using a 3 T Allegra system scanner (Siemens) equipped with a standard quadrature head coil. High-resolution three-dimensional whole-brain

T1-weighted MRI scans were acquired using a magnetization prepared rapid gradient echo sequence, were obtained as a volumetric three-dimensional spoiled fast gradient echo with the following parameters: TR=250 ms, TE= 2.6 ms, slice thickness = 1.0 mm; flip angle = 9 Ê; and field of view = 230 × 230 mm, 1 × 1 × 1 mm3 voxel size. The volume consisted of 192 contiguous coronal sections covering the entire brain.

T2-weighted MRI scans were acquired using the following parameters: TR=3500 ms, TE= 354 ms.

FLAIR MRI scans were acquired using the following parameters: TR=12.000 ms, TE= 140 ms.

DTI scanning study protocol consisted of 80 volumes, slice thickness 2.0 mm, representing 80 gradient directions, TR=9400 ms, TE= 80 ms, slice thickness = 2.0 mm; flip angle = 90, b =1000 s/mm2 and two scan with gradient 0 (b = 0), resolution was 1 × 1 × 1.

Image processing

DTI processing: DTI images were processed using SPM 5 statistical parametric mapping software (Welcome Trust Centre for Neuroimaging, UCL, London, UK) in the analysis environment MATLAB (version R200 8b) within a Mat lab framework (The Math Works Inc., Natick MA, USA). Images were reoriented into oblique axial slices aligned parallel to the anterior-posterior commissural axis with the origin set to the anterior commissure, Eddy currents distortions were corrected, diffusion tensor was estimated, scalar maps (FA) were constructed, fibre tracking was done, tensor were visualized..

VBM analysis: VBM was a fully automated, whole-brain technique that enables measurement of regional brain volumes based on voxel-wise comparison of grey and white matter volumes using Statistical Parametric Mapping 5 software, running on Mat lab 2008b.

VBM was performed by using SPM5 (Welcome Department of Imaging Neuroscience, London, United Kingdom) and the DARTEL registration method. Briefly, the process was as follows: T1-weighted images were segmented by using VBM5.1 toolbox of SPM, the images were imported in DARTEL, rigidly aligned, and segmented into grey and white matter, the grey and white matter segments were coregistered simultaneously by using the fast diffeomorphic image registration algorithm and the flow fields were created, the flow fields were then applied to the rigidly aligned segments to warp them to the common DARTEL space and then were modulated by using the Jacobian determinants, the modulated images from DARTEL were normalized to the MNI template by using an affine transformation estimated from the DARTEL grey matter template and the a priori grey matter probability map without resampling, before the statistical computations, the images were smoothed with an 10-mm FWHM Gaussian filter.

Grey and white matter of ALS patients and health subjects were compared using t-test statistical analysis, with p<0.05.

Statistical analysis

Descriptive statistical measures were applied. We calculated percent of neurophysiological test that were affected in ALS patients, percent of abnormalities of anatomical MRI images, mean value of FA at different points of corticospinal tract and callossum corpus; mean value of fibre count of corticospinal tract and callosum corpus in ALS and health subjects. A regression analysis was done between FA and fibre count values and ALSFRS-R scale in ALS patients.

Results

Clinical characteristics of the study population

25% of ALS patients had antecedents of exposure to toxic substances like: plumb, heavy metals, organophosphate substances in previous step of theirs life.

ALSFRS-R scale had a mean score of 38/48 maximum value.

Neurophysiological studies

MNC studies were: abnormal in 70% of ALS patients, principal abnormalities were amplitude diminish, latencies enlargement and nerve conduction velocities slowing. SNC studies were abnormal in 55% of ALS patients, principal abnormalities were: absence of responses, amplitude diminishes, latencies enlargement and nerve conduction velocities slowing. SSEP was abnormal in 40% of ALS patients; principal abnormalities were: P40 latency and Central Conduction Time enlargement. EMG were abnormal in 100% of ALS patients, it showed a neurogenic pattern in muscles of three anatomical regions (bulbar, cervical and lumbo-sacral) (Graph 1).

Graph 1: Percent of positivity of electrophysiological evaluation

Anatomical images

Anatomical image showed hyper intensity of corticospinal tract in 50% of patients, at FLAIR and T2 sequences (Figure 1).

Figure 1: Abnormalities of anatomical MRI (3T). Hyperintendity of corticospinal tract in a patient with ALS at T2 sequences (A,B) and FLAIR (C,D), coronal view (A,C) and axial view (B,D).

DTI images

FA was diminished along entire corticospinal tract and corpus callosum in ALS patients in comparison with health subjects (Figure 2), but this diminish was not homogeneous, it was more meaningful at cortex (p=0.00), internal capsule (p=0.04) and corpus callosum (previous p=0.04 and posterior portions p=0.00) (Graph 2); p<0.05 was considered statistically significant.

Figure 2: Fractional anisotropy diminishes in a ALS patient (A, B, C) in comparison with a health subject (D, E, F). Coronal (A, D), Axial (B, E) and Sagital (C, F) views.

Graph 2: Fractional anisotropy means values.

Tractography

Tractography study revealed that CST volumes of ALS patients is lower than health subjects, means fibre count was lower at corticospinal tract and corpus callosum in ALS patients in comparison with health subjects, p=0.01 (Graph 3 and Figure 3); p<0.05 was considered statistically significant.

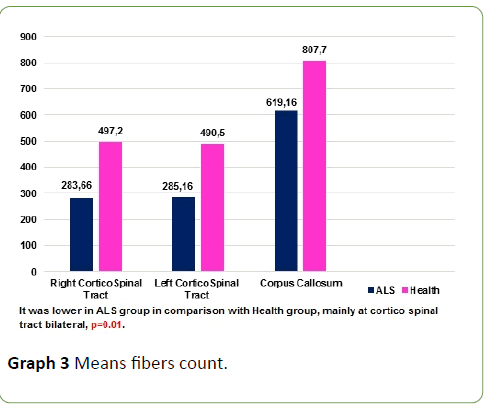

Figure 3: Fiber count of right (A, B) and left (C, D) cortico spinal tract and corpus callosum (E, F). It was diminished in an ALS patient (A, C, E) in comparison with a health subject (B, D, F).

Graph 3: Means fibers count.

Regression analysis between FA at different points of corticospinal tract, fibre counts and ALSFRS-R scale was signified at right and left cortex (p=0.00-0.0), right and left internal capsule (p=0.02-0.00), left brainstem (p=0.00), and corpus callosum (previous p=0.00, medium p=0.02 and posterior p=0.00) (Table 1); p<0.05 was considered statistically significant.

Parameters	Intercept (b)	Std. Error	P
FA CST right cortex	0.34	0.11	0.03
FA CST left cortex	0.26	0.05	0.00
FA CST right radiated corone	0.53	0.20	0.05
FA CST left radiated corone	0.63	0.28	0.09
FA CST right internal capsule	0.54	0.14	0.02
FA CST left internal capsule	0.57	0.06	0.00
FA CST right brainstem	0.48	0.19	0.06
FA CST left brainstem	0.47	0.07	0.00
Corpus callosum previous	1.11	0.05	0.00
Corpus callosum medium	0.90	0.24	0.02
Corpus callosum posterior	0.92	0.41	0.00
CST-right fiber count	147.79	161.50	0.41
CST-left fiber count	519.54	555.02	0.40
Corpus callosum fiber count	519.54	555.02	0.40

Table 1: Regression analysis between clinic (ALSFRS-R) scale and imagenological parameters.

Voxel based morphometry (VBM)

Patterns of brain atrophy in grey matter: We observed reduced grey matter density in ALS patients in relation with control group in cingulate gyrus (anterior and medium portion), anterior portion of occipital lobe, left caudate and putamen nucleus, right claustrum nucleus, lower and medium temporal gyrus bilateral, left pre-central and post-central gyrus (Figure 4); p<0.05 was considered statistically significant.

Figure 4: Generic MRI brain slices with superimposed areas showing statistically significant regions of grey matter atropy (p<0.05, corrected for multiple comparisons) in a group of 20 ALS patients compared with 20 healthy agematched controls using voxel-based morphometry. It shows grey matter atropy in cingulate gyrus (anterior and medium portion), anterior portion of occipital lobe, left caudate and putamen nucleus, right claustrum lower and medium temporal gyrus bilateral, left precentral and post central gyrus. The colored bar represents the T score.

Patterns of brain atrophy in white matter: We observed reduced white matter density in ALS patients in relation with control group in corpus callosum (medium and posterior portion), corticospinal tract (at midbrain and pons), bilateral internal capsule (medium and posterior third), bilateral optical radiation, bilateral lower longitudinal fascicle, bilateral hippocampal fimbriae, and bilateral radiated corona and ponto-cerebellar fibres (Figure 5); p<0.05 was considered statistically significant

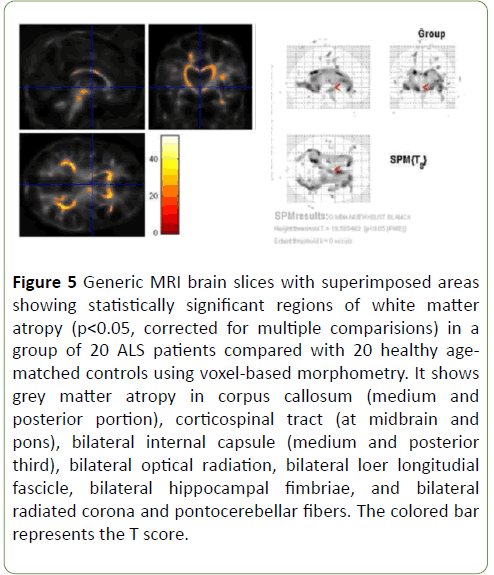

Figure 5: Generic MRI brain slices with superimposed areas showing statistically significant regions of white matter atropy (p<0.05, corrected for multiple comparisions) in a group of 20 ALS patients compared with 20 healthy agematched controls using voxel-based morphometry. It shows grey matter atropy in corpus callosum (medium and posterior portion), corticospinal tract (at midbrain and pons), bilateral internal capsule (medium and posterior third), bilateral optical radiation, bilateral loer longitudial fascicle, bilateral hippocampal fimbriae, and bilateral radiated corona and pontocerebellar fibers. The colored bar represents the T score.

Discussion

In ALS physiopathology some researchers have been postulated a disfunction of Superoxido Dismutasa 1 (SOD1) enzyme, it produce an increase of free radicals into the cell, wich produce abnormalities in the cell transport, dysfunction of the intacelular organelos increase of the glutamate levels into the cell, excitotoxicity, wich is mediated by glutamate and cell death. This proces ocurrs into the neurons and glias [3].

In ALS causes enviroment factors have been studied, such as: toxic exposure (heavy metals, calcium, selenium, manganesum, magnesium, mercury, lead, copper), cigar, organic solvents, organophosphorus substances, radiations, electromagnetic fields [11,12].

There is limited evidence that those factors could cause ALS. In our cases serie only 25% reported contact with some toxic substance.

Neurophysiological studies

Motor nerve conduction studies show expected results, they were afected in 70% of ALS patients. In a great of group of ALS patients motor response of peripheral nerves are affected due to retrograde degeneration.

Sensory nerve conduction showed abnormalities in 55% of ALS patients. The revised El Escorial (World Federation of Neurology) criteria for the diagnosis of ALS allow abnormal sensory NCS only in the presence of entrapment syndrome or coexisting peripheral nerve disease; normal electrophysiological studies on sensory nerves are generally required for the diagnosis of ALS. Nevertheless, several neurological, clinical neurophysiological and neuropathological studies have suggested that ALS is a more generalised neurodegenerative disorder [13].

Pugdahl reported of 41 sensory nerves examined in ALS, 32 (78%) nerves had abnormal nerve conduction parameters: 6 had decreased of nerve conduction velocity and decreased of amplitude, 10 had decreased of nerve conduction velocity, 14 had decreased of amplitude and 2 nerves did not elicit any response [13].

Animals model of ALS have reported degeneration of proprioceptive dorsal root ganglion cell and nerve pathology in ventral and dorsal roots at the latest period of the disease and small nerve fiber pathology by inducing axonal stress in smalldiameter, swollen axons in the dorsal roots [14,15].

SSEP were afeted in 40% of ALS patients. At past time this abnormality was an exclusion criteria for ALS, although there are some report from eighty decade that puts in evidence that the sensory system could therefore be affected by the same abnormality involving the motor neurons, but to a lesser extent and without clinical evidence. Cosi et al. in 1984 studied 47 ALS patiets, they reported N13 latency of SSEP significantly increased, central conduction time was significantly increased, mean value of N19 latency was significantly increased, P40 latencies were significantly increased, amplitude was significantly reduced in ALS patients in comparisson with control group [16].

At the actual times autopsy cases and animal studies showed involvement of sensory pathways, some researchs have demonstrate sensory abnormalities of the SSEP and spinal cord in ALS patients. Cohen, et al. have demostrated through multi-parametric MRI of the spinal cord DTI and magnetization transfer abnormalities in the lateral corticospinal tract and dorsal segments of the cervical spinal cord, spinal cord atrophy associated with the corresponding muscle deficit and correlations between FA and electrophysiological measurements [17,18].

EMG was abnormal in all of our patients. It is used as a diagnostic criteria of ALS. EMG is very important to evidence of generalized damaged of moto neuron of anterior horn, it shows acute or chronic denervation, reinervation signs. Awaji criteria recommend giving importance to electrophysiologic evidence that shows chronic neurogenic changes at the same time that clinic evidence of motoneuron damage [19].

EMG let confirm ALS diagnosis if abnormalities raise to two or three anathomic regions and let do differential diagnosis [19].

Anatomical images

Da Rocha et al. found hyperintensity of corticospinal tract in ALS patients and not in health subjects. Authors attributed this finding to the loss of myelin and axons, secondary to neuronal degeneration [20,21].

Others authors have reported hyperintensity of corticospinal tract, however, the sensitivity of such changes has been estimated at <40% and the specificity <70 [22-29].

DTI images

In our study FA was diminished along entire corticospinal tract and corpus callosum in ALS patients in comparison with health subjects, but this diminish was not homogeneous, it was more meaningful at cortex, internal capsule and corpus callosum.

The value of FA was diminished in corticospinal tract in comparison with the normal value obtained in a big previous study of health subjects in Cuba [30].

The majority of DTI studies to date have used a region of interest method to compare groups, all published studies in corticospinal tract have demonstrated the potential of DTI to discriminate ALS patients from healthy controls on the basis of changes in FA at various levels of the corticospinal tract. FA changes within the CST at baseline may be even able to predict disability at 6 months according to some studies [31-33].

Loss of pyramidal motor neurons in the primary motor cortex and axonal degeneration of the corticospinal tract, together with the proliferation of glial cells, extracellular matrix expansion, and interneuron abnormalities, may contribute to the observed corticospinal tract DTI changes. The most pronounced decreased FA and increased have been shown in the posterior limb of internal capsule [34,35].

Verstraete et al. in 2010 reported that FA values in the corpus callosum and the corticospinal tract were found to be significantly reduced (p<0.05) in ALS patients compared to controls. The FA reduction was more dispersed in the Corpus callosum compared to the corticospinal tracts. Tractbased results, analysing the trajectory of FA along the corticospinal tracts, showed that the reduction in FA becomes less pronounced as the tract descends from the cortex to the brainstem corresponding to more loss of integrity in the rostral part compared to the caudal part of the corticospinal tract. It is accord with our results [36].

VBM

In some VBM study of ALS patient’s widespread regions of grey matter atrophy were detected in both motor (primary motor cortex) and non-motor regions (including the temporal lobes). [27-30,36].

Other studies have demonstrated atrophy in the bilateral para-central lobule and in non-motor structures like: the corpus callosum, the cerebellum, and the frontotemporal and occipital areas [37-39].

Canu et al. on 2011 reported significant volume losses in white matter areas: left superior frontal region, the vicinities of the supplementary motor area bilaterally, right precentral region, and left inferior temporal region [27].

We don´t find any abnormality of FA or VBM at cerebellum in ALS patients, nevertheless several researches have reported diminish of FA in cerebellum and atrophy of grey and white matter in specific zones of cerebellum in ALS patients [40].

Grolez et al. on 2016 published an important review in relation with the value of MRI as a biomarker for amyotrophic lateral sclerosis. They have mentioned grey matter atrophy in ALS patients in some areas like: pre-central gyrus, frontal lobe, the cingulate cortex, several parts of the temporal cortex, the hippocampus, the parietal cortex (mostly in the post-central cortex) and the insula, they have mentioned too occipital grey matter and cerebellar atrophy, but, less common. In relation with basal ganglia they refered thalamus and the caudate nucleus atrophy [39].

In a meta-analysis made by Shen et al., who analized 29 studies, was evidenced that grey matter was decreased in ALS patients compared with health controls, it was more significant in the bilateral Rolandic operculum, right precentral gyrus,left lenticular nucleus (mainly the putamen) and right anterior cingulate gyri, with a thresholdof p<0.005. The metaregression analyses showed that higher symptom severity (proportional ALSFRS scores) was associated with decreased grey matter in the right precentral gyrus and the left inferior frontal gyrus. A longer disease duration correlated with more grey matter atrophy in the right precentral gyrus in patients with ALS [40].

Unfortunately we don´t evaluate functional conectivity. In relation with it, Verstraete et al. on 2011 demosntrated a single impaired sub-network in ALS patients, it was consisted of 9 nodes and 10 (bidirectional) connections, of reduced connectivity in patients with ALS (NBSa; p= 0.0108, permutation testing). This impaired network overlapped with the left and right precentral gyrus, left pallidum, left hippocampus, left and right caudal middle frontal gyrus, right paracentral gyrus, right posterior cingulate and right precuneus. Interestingly, although a whole brain analysis was performed without any a priori selection of motor regions, the regions of this impaired network strongly overlap with regions that are known to play a key role in motor movement and control [41].

Correlation between FA and ALSFRS-R score

The opinion of the authors are very controversial in relation with this point.

Trojsi and Verstraete et al. in 2010 did not find a significant correlation using Pearson’s correlation testing between imaging measures (averaged along the cortico spinal tract) and clinical markers (ALSFRS-R) [34-36].

Verstraete et al. in 2011 showed that diminish of conectivity in ALS patients were not significantly correlated ALSFRS or progression rate scores [42].

Grolez et al. in 2016 mentioned that lower ALSFRS-R scores were associated with greater volume loss in the basal ganglia and volume changes in several parts of the frontal lobe; and the disease duration was negatively correlated with FA in the cerebellum, the subcortical white matter of insula, the ventrolateral premotor cortex, the cingulum, the precuneus and the splenium of the corpus callosum [39].

As Kim et al. research in 2017, ALSFRS-R score was associated with atrophy in multifocal gray matter areas including the bilateral frontal, left superior, supramarginal gyri and the left orbitofrontal area [41].

Conclusion

Motor and Sensory neurophysiological abnormalities could be found in ALS patients. MRI image is very useful in evaluate brain structures of ALS patients. This study found that sporadic ALS patients with normal levels of cognition and pure motor symptoms show multiple sites of cortical and subcortical atrophy in areas that extend beyond motor regions.
